AR3106
AR24F20ANRT-SEN-CP
Caratteristiche tecniche
properties
- Duration: 1h/1,5h/2h/3h
- Type: NM/M
- Function: Smart Plus
- Input power: 4,8W
- Avarage flux N/M: 600/600/600/400lm (1/1,5/2/3h)
- Flux M: 600lm
- Battery: Li-FePO4 3,2V 3Ah
AR3106
AR24F20ANRT-SEN-CP
Technical features
properties
- Duration: 1h/1,5h/2h/3h
- Type: NM/M
- Function: Smart Plus
- Input power: 4,8W
- Avarage flux N/M: 600/600/600/400lm (1/1,5/2/3h)
- Flux M: 600lm
- Battery: Li-FePO4 3,2V 3Ah
Downloads Update in progress
-
Datasheet
-
LDT Photometric file
-
Installation distance table
-
EU declaration of conformity
-
2D CAD block
-
BIM file
-
Specifications text
-
Installation instructions
- Download all

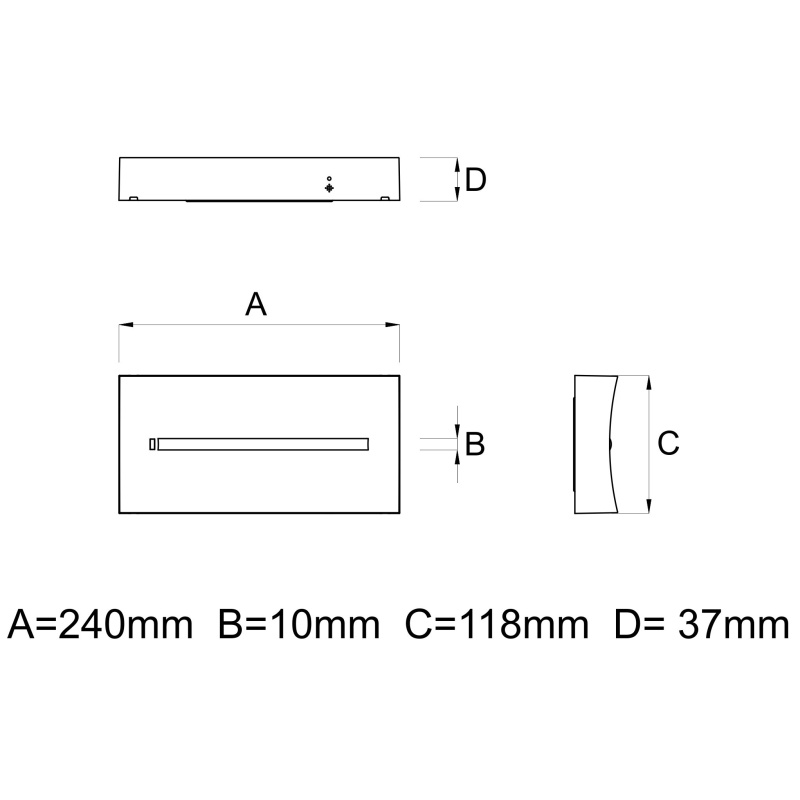

Technical drawing

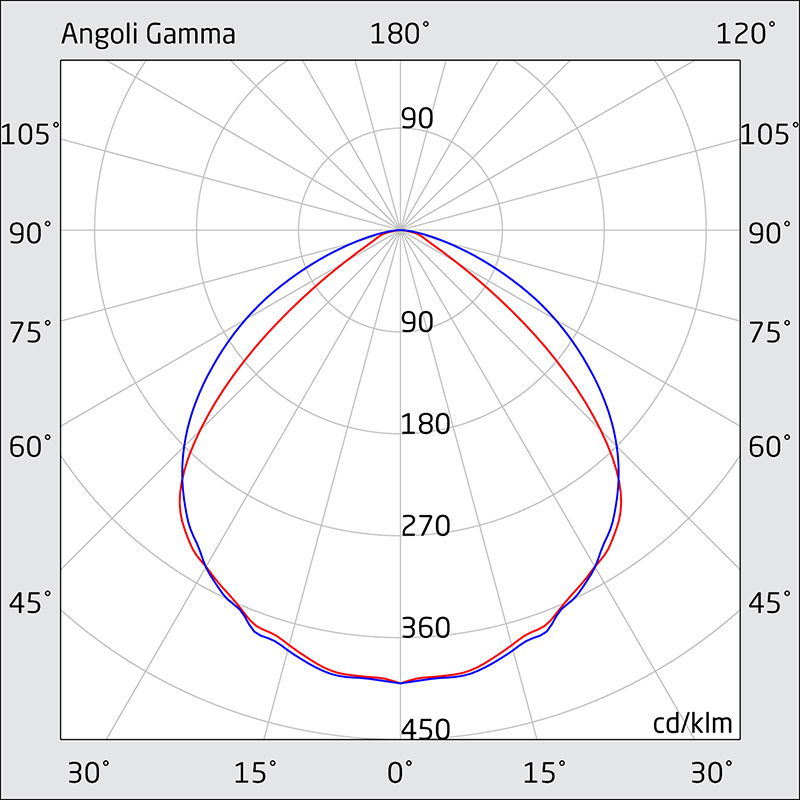

Polar Diagram
